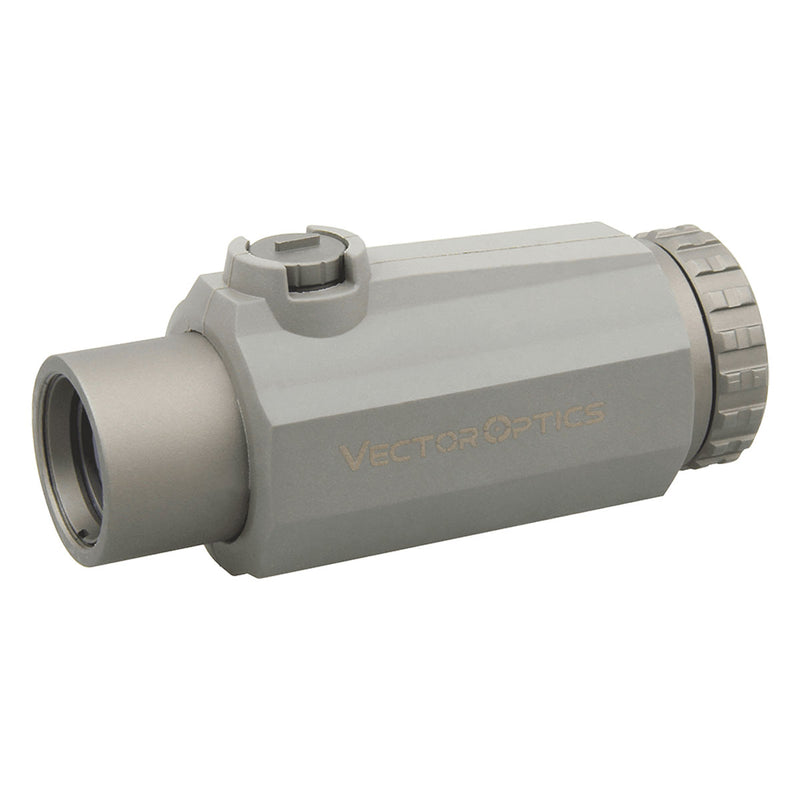

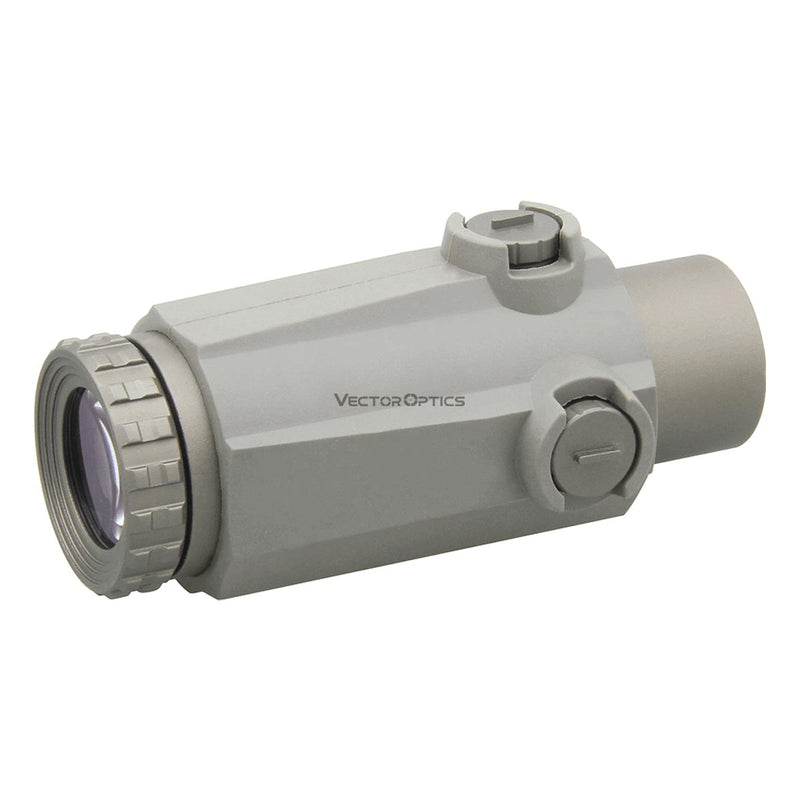

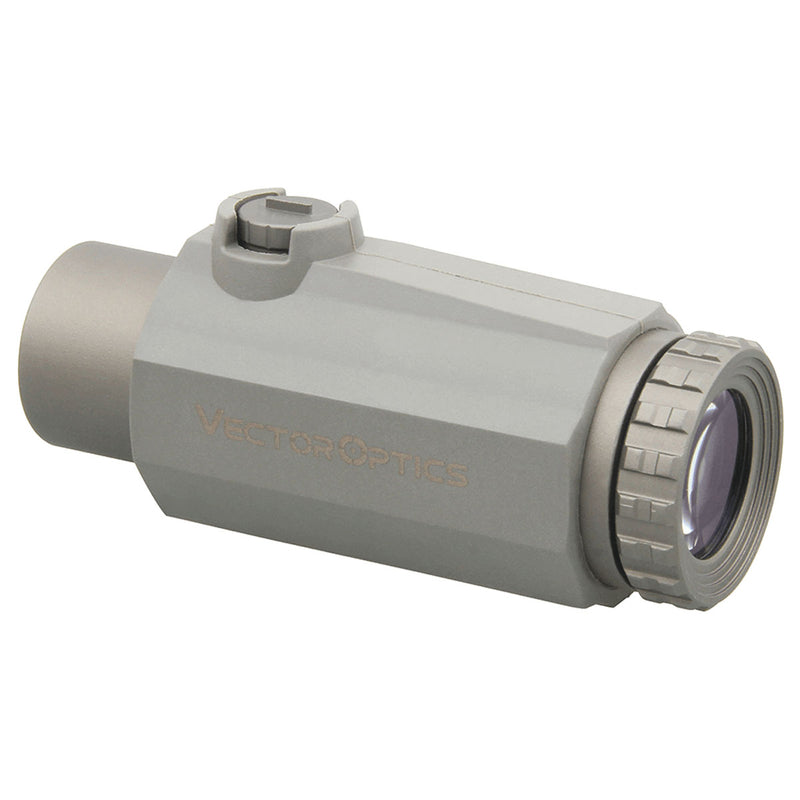

Maverick-III 3x22 Magnifier SOP SCMF-32
Enjoy a crisp, well-defined image , protected by an FDE (Flat Dark Earth) colored rubber coating for enhanced durability in the field.

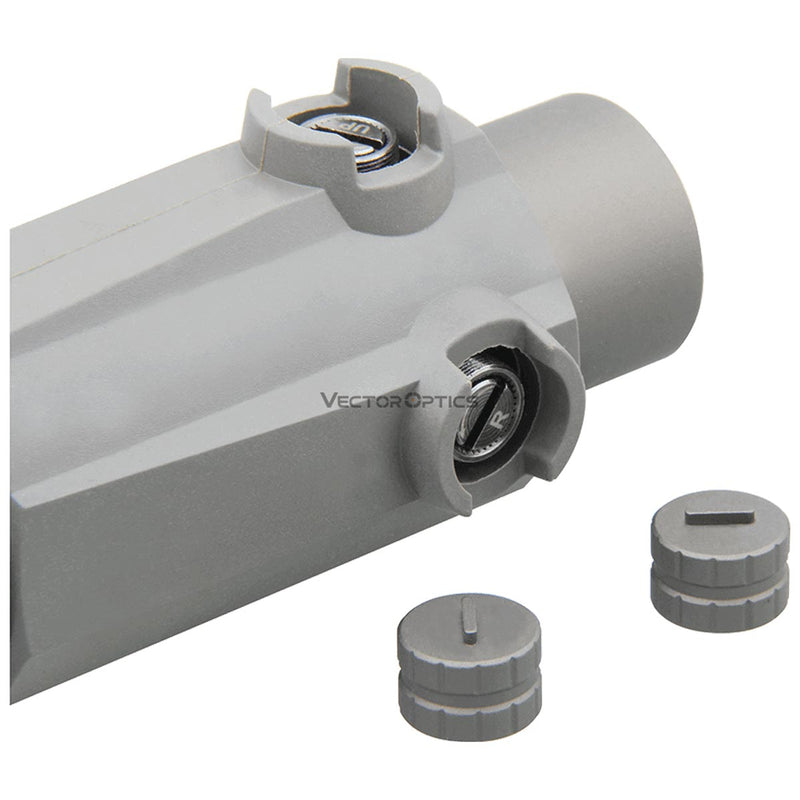

The integrated windage and elevation adjustments allow for precise alignment with your red dot sight.
Its 69mm eye relief provides a comfortable shooting position, even with a weapon that has strong recoil.

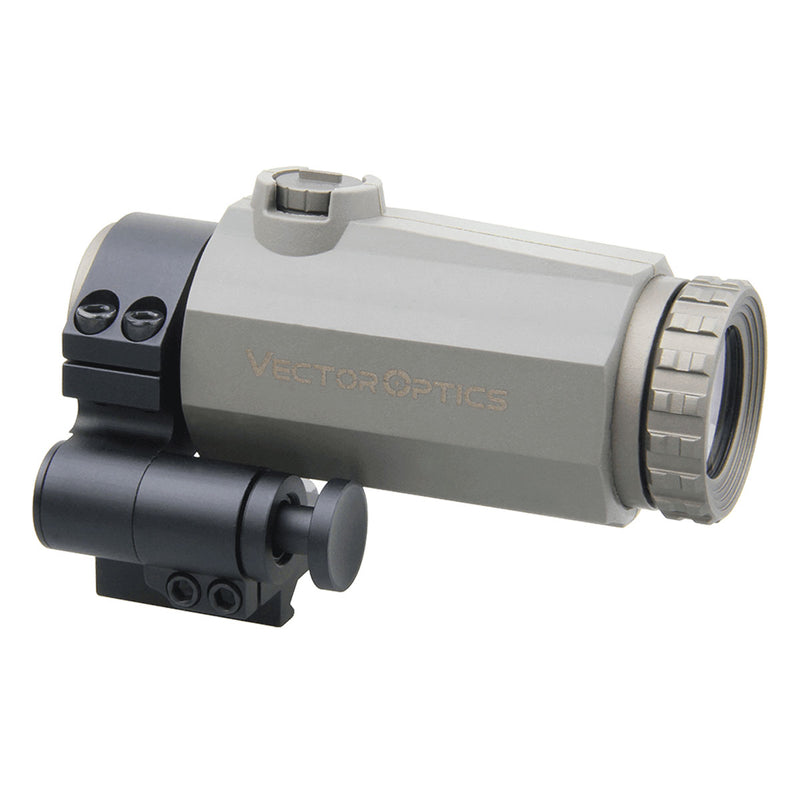

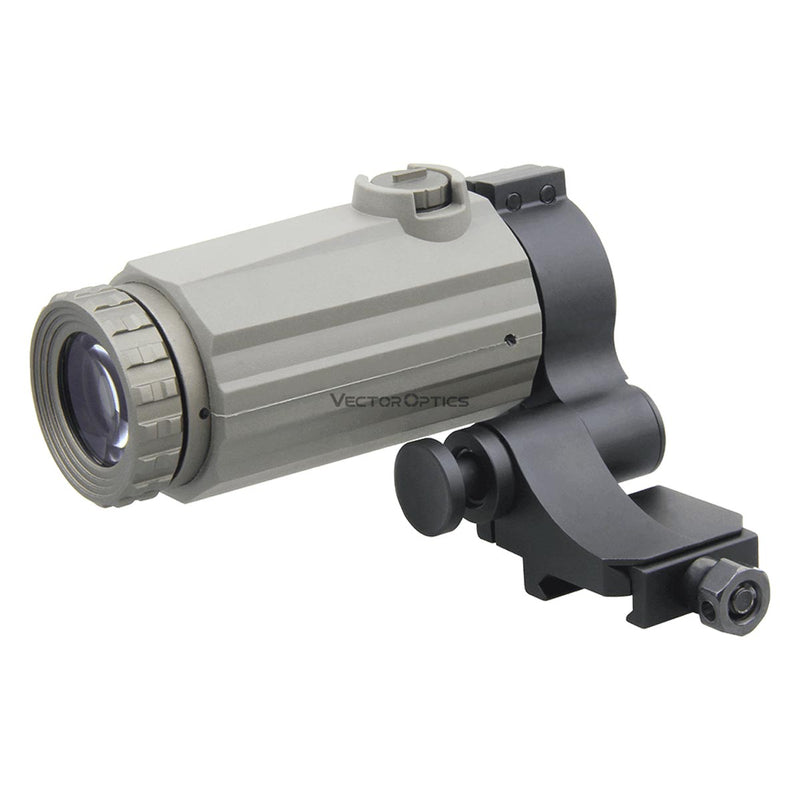

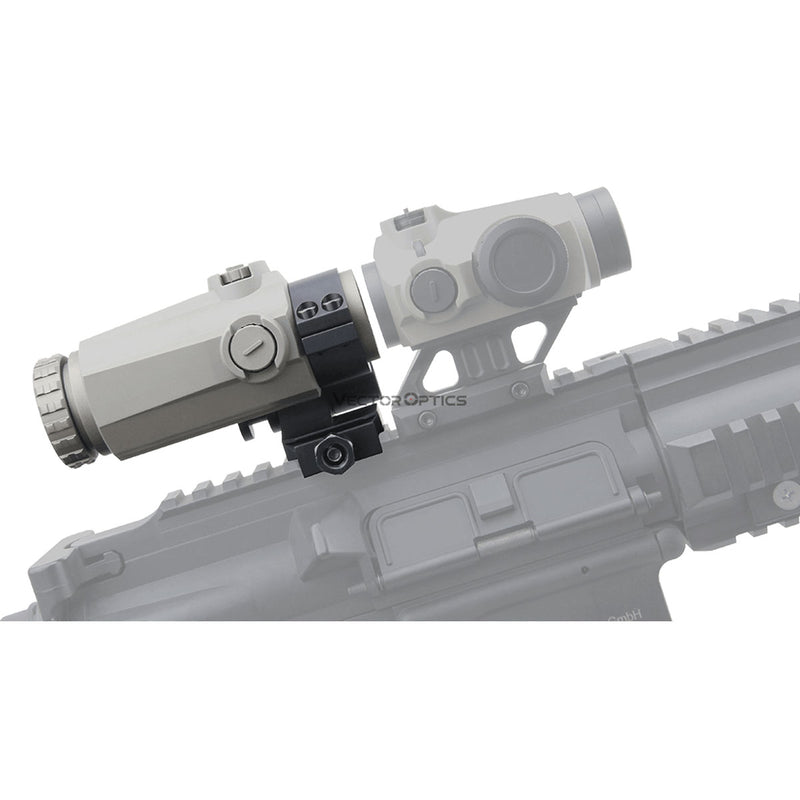

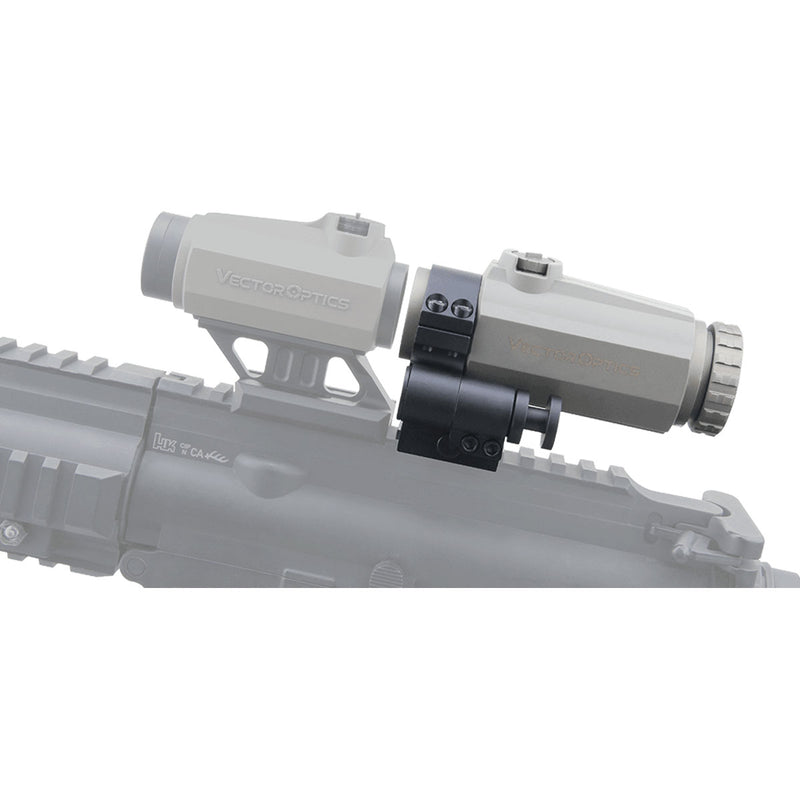

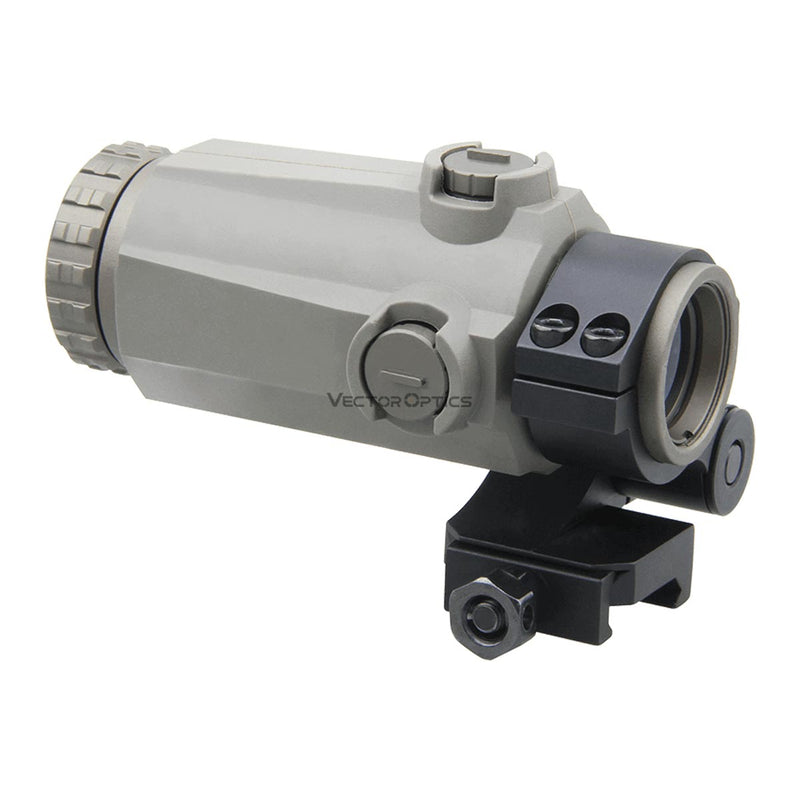

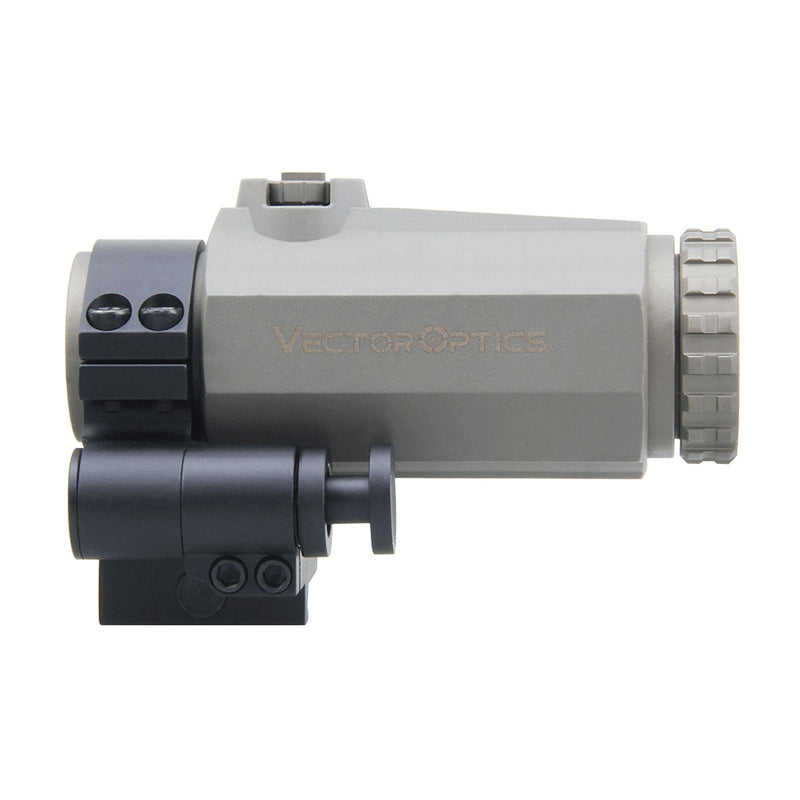

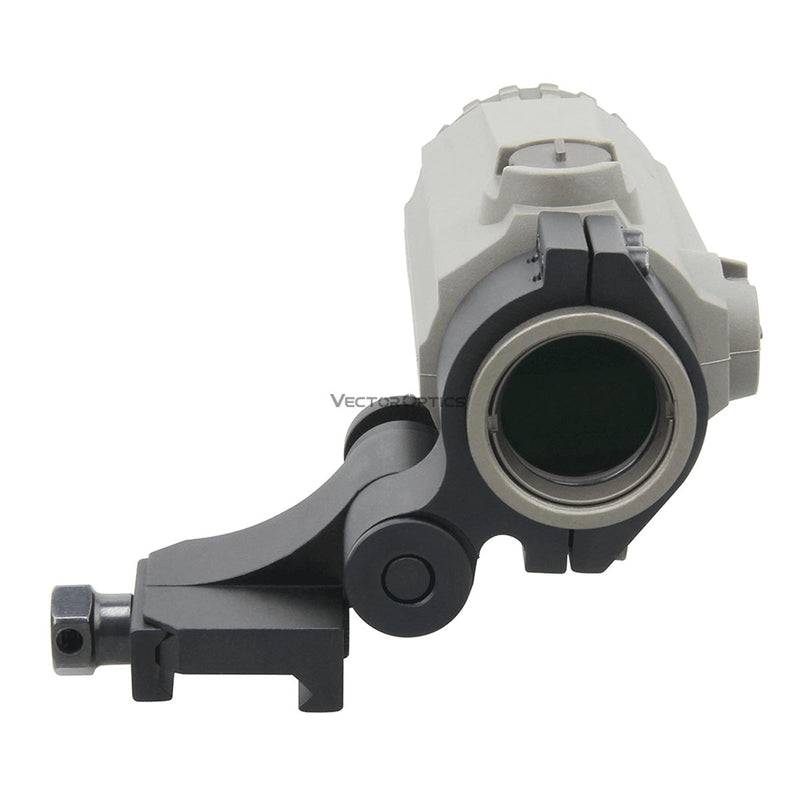

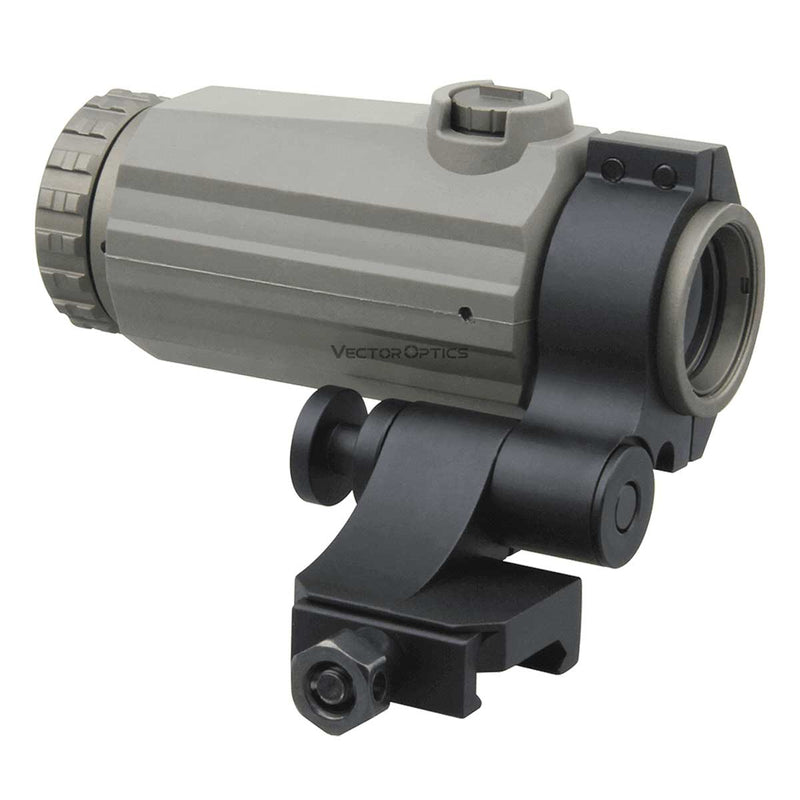

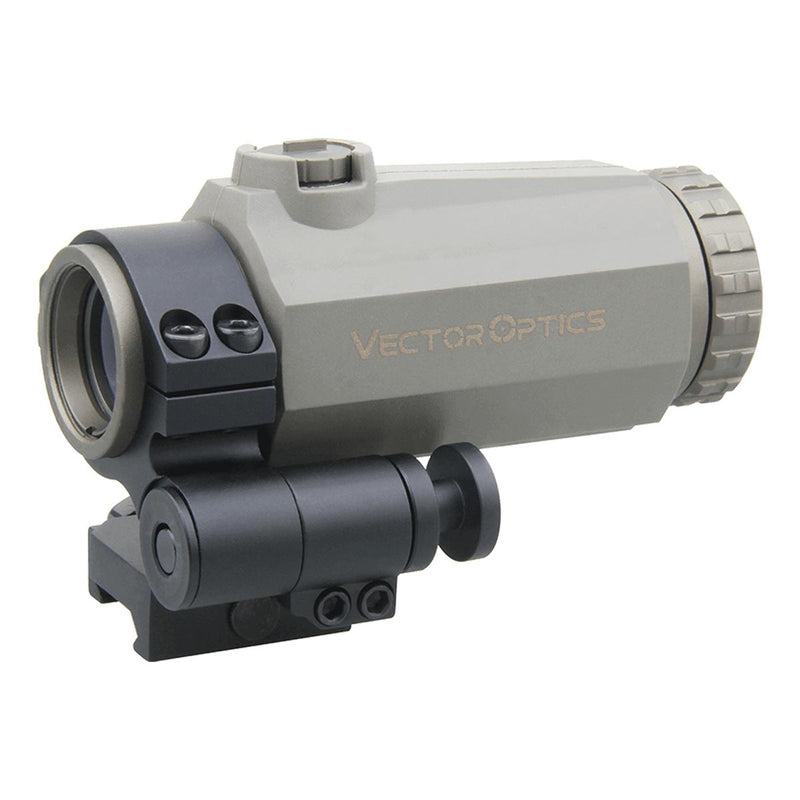

The included SCTM-17 Flip Side Picatinny quick-release (QD) mount allows for easy side-folding of the magnifier. The optical axis is located 36 mm high (from the base to the center of the optic) , ideal for natural co-viewing.
Compatibility:
This product is compatible with the following Red Dot Sights (via the MAV-P08 adapter ) :
-
SCRD-39 – Maverick GenIII 1x22 SOP FDE • 3 MOA
-
SCRD-38 – Maverick GenIII 1x22 SOP Black • 3 MOA
-
SCRD-61 – Maverick-IV 1x20 Rubber FDE Reflex Sight MIL • 3 MOA
-
SCRD-60 – Maverick-IV 1x20 Mini Black Reflex Sight MIL • 3 MOA
-
SCRD-PD12 – Maverick-II Plus 1x22 DBR Dual Reticle • 2 MOA
-
SCRD-PS12 – Maverick-II Plus 1x22 SOL Solar • 2 MOA
Optical characteristics:
-
Magnification : 3x
-
Lens diameter : 22 mm
-
Exit pupil : 7.0 mm
-
Eye relief : 69 mm
-
Field of view : 9.3°
-
Lens coating : Fully multi-coated for optimal light transmission
Mechanical characteristics:
-
Mounting : Picatinny rail, side-toggle, with quick-release locking system (QD)
-
Settings : adjustable windage and elevation
-
Diopter correction : not available
-
Waterproofing : IP67 standard (dust and temporary immersion resistance)
-
Impact resistance : not specified
-
Body material : 6061-T6 aircraft-grade aluminum
-
Finish : matte grey
-
Length : 103 mm
-
Height (from base to optical center) : 36 mm
-
Weight (net) : 290 g
Package contents:
- Magnifier Maverick-III 3x22
- Flip Side 30 mm QD Folding Mount
- User manual
- Cleaning cloth
- Allen keys
