Screw Package Vector Optics SCTK-07

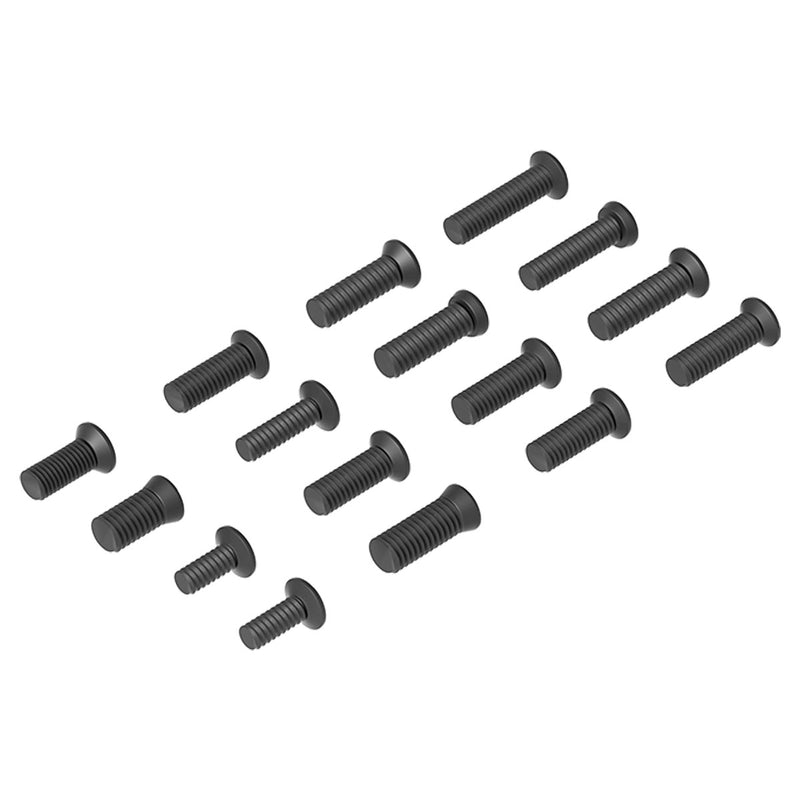

Complete set specifically designed for attaching and maintaining your aiming accessories (red dot sights, riflescopes, adapters, etc.). It includes 48 screws in total, featuring both metric (ISO) and US (UNC/UNF/UNEF) threads, all with a Torx T10 drive for precise and reliable tightening.
Kit Contents

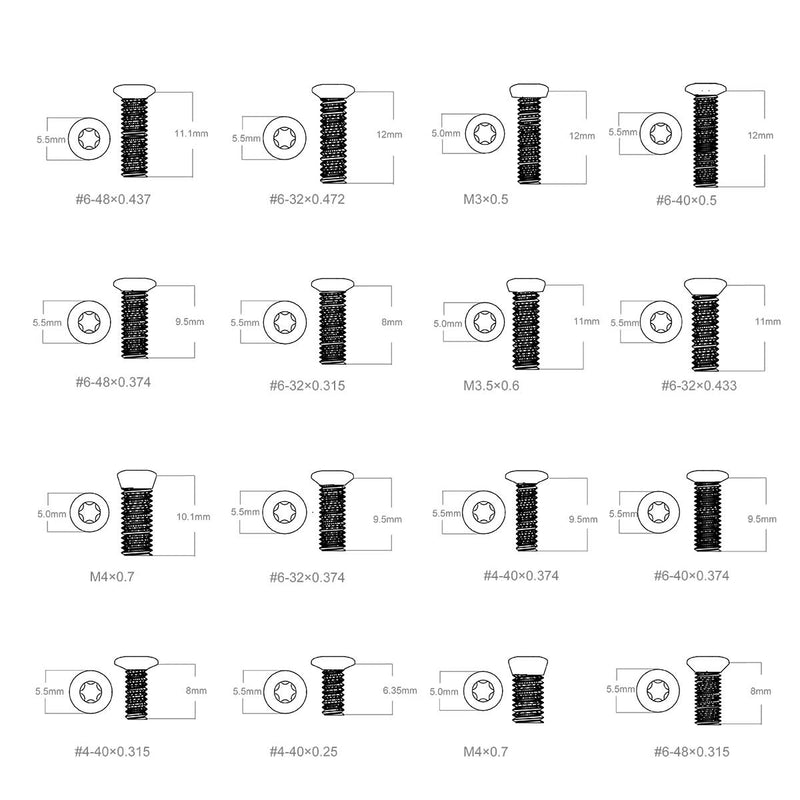

Each batch of screws is detailed below, with its thread type, length (L), head diameter (Ø) and Torx T10 drive:
| No. |
Thread (Standard) |
Dimensions (L, Head diameter, Footprint) |
Quantity |
| 1 |
#6-48 (UNEF) |
L = 11.1 mm, Head diameter = 5.0 mm, Torx T10 |
3 pieces |
| 2 |
#6-32 (UNC) |
L = 12 mm, Ø head = 5.5 mm, Torx T10 |
3 pieces |
| 3 |
M3 × 0.5 (ISO) |
L = 12 mm, Head diameter = 5.0 mm, Torx T10 |
3 pieces |
| 4 |
#6-40 (UNF) |
L = 12 mm, Ø head = 5.5 mm, Torx T10 |
3 pieces |
| 5 |
#6-48 (UNEF) |
L = 9.5 mm, Ø head = 5.5 mm, Torx T10 |
3 pieces |
| 6 |
#6-32 (UNC) |
L = 8 mm, Ø head = 5.5 mm, Torx T10 |
3 pieces |
| 7 |
M3.5 × 0.6 (ISO) |
L = 11 mm, Head diameter = 5.0 mm, Torx T10 |
3 pieces |
| 8 |
#6-32 (UNC) |
L = 11 mm, Head diameter = 5.5 mm, Torx T10 |
3 pieces |
| 9 |
M4 × 0.7 (ISO) |
L = 10.1 mm, Head diameter = 5.0 mm, Torx T10 |
3 pieces |
| 10 |
#6-32 (UNC) |
L = 9.5 mm, Ø head = 5.5 mm, Torx T10 |
3 pieces |
| 11 |
#4-40 (UNC) |
L = 9.5 mm, Ø head = 5.5 mm, Torx T10 |
3 pieces |
| 12 |
#6-40 (UNF) |
L = 9.5 mm, Ø head = 5.5 mm, Torx T10 |
3 pieces |
| 13 |
#4-40 (UNC) |
L = 8 mm, Ø head = 5.5 mm, Torx T10 |
3 pieces |
| 14 |
#4-40 (UNC) |
L = 6.35 mm, Head diameter = 5.5 mm, Torx T10 |
3 pieces |
| 15 |
M4 × 0.7 (ISO) |
L = 8.6 mm, Head diameter = 5.0 mm, Torx T10 |
3 pieces |
| 16 |
#6-48 (UNEF) |
L = 8 mm, Ø head = 5.5 mm, Torx T10 |
3 pieces |
Noticed :
- Threads
#6-32 and #4-40 fall under the UNC standard (coarse pitch).
- The
#6-40 thread corresponds to the UNF standard (fine pitch).
- The
#6-48 thread is classified as UNEF (not extra-fine).
- Metric screws (M3, M3.5, M4) conform to the ISO standard (pitch 0.5, 0.6 or 0.7 mm).
Key Strengths
-
Wide Compatibility : Offers both US (UNC/UNF/UNEF) and metric (ISO) threads, to cover most optics and firearm accessory mounts.
-
Vector Optics Reliability : Renowned for the quality of its products, Vector Optics provides strong and durable screws, perfectly suited to the world of sport shooting and hunting.
-
Torx T10 drive : Reduces the risk of slippage and allows for precise tightening, ensuring optimal hold and preventing damage to the screws.
-
Complete Kit : To meet various fixing or replacement needs, without having to search multiple times for compatible screws.
Usage Tips
- Check thread compatibility before installation (UNC, UNF, UNEF or ISO).
- Use a quality Torx T10 tool to apply the correct tightening torque.
- We recommend using a threadlocker (such as Loctite blue 243) to limit loosening under the effect of recoil.
- Tighten moderately to avoid any deformation or stripping of the threads.
Recommended Uses
-
Red Dot Sights : Ensures a robust attachment on various rails (Picatinny, Weaver, base and red dot adapter).
-
Sights : Ideal for securing the mounting of optics, preventing any play or misalignment when shooting.
-
Adapters & Clamps : Allows for quick replacement of a damaged screw or one unsuitable for a specific assembly.
-
Armory Maintenance : A versatile kit to have on hand for any intervention on sighting systems or accessories.
